Fuel Injector Removal Tool Puller Kit for Ford Powerstroke Diesel 6.7L (2011-2018)

Designed to assist in removing the injector from the cylinder head without causing damage to the injector.

and surrounding components.

Compatible with F-250 F-350 F-450 F-550 with 6.7L Powerstroke Diesel 2011 2012 2013 2014 2015 2016 2017 2018.

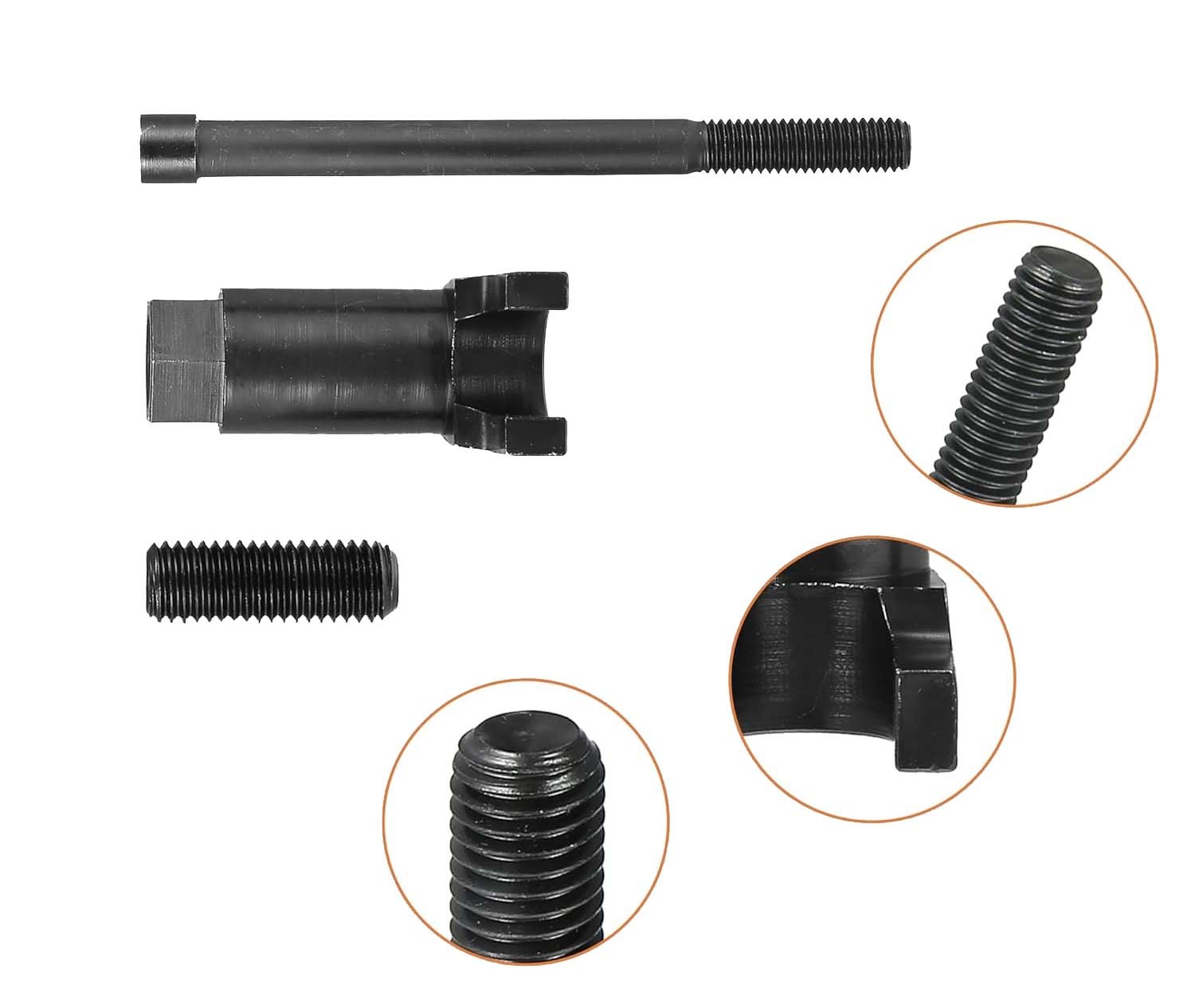

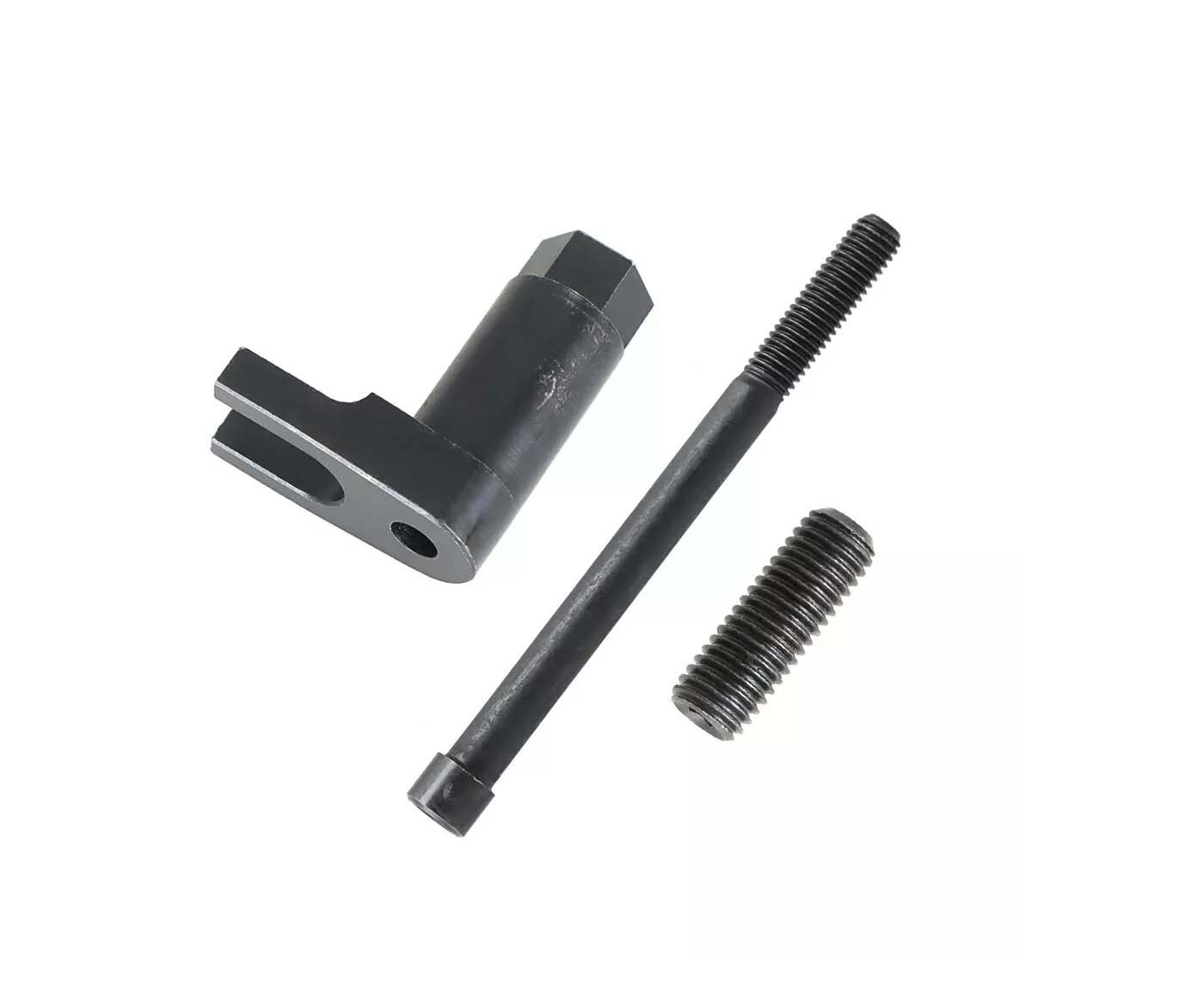

Package Includes:
1 x Injector Remover
1 x Long Bolt
1 x Short Bolt

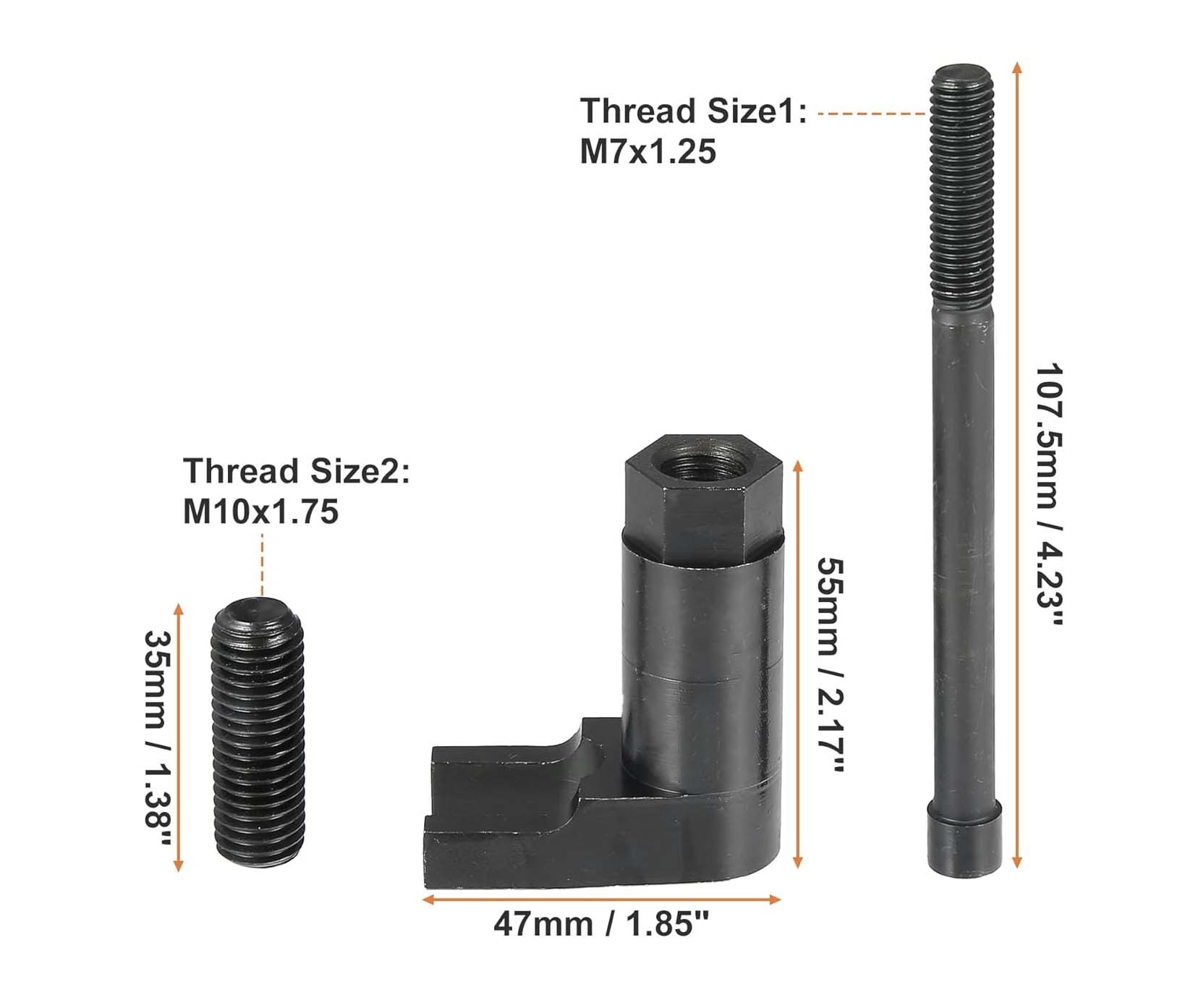

Injector Remover Size: 55x47mm / 2.17''x1.85''(L*W)
Long Bolt: 107.5mm / 4.23''(L)
Thread Size1: M7x1.25
Short Bolt: 35mm / 1.38''(L)
Thread Size2: M10x1.75

Instructions for Use:
Installation Steps:
1. Remove the old bolt and slide,
2. Install the remover to sit into the injector,
3. Screw the long bolt into remover, put and screw the short bolt into remover,
4. When force screwing the short bolt into the remover, the injector will be free and can be take out from diesel.
Note: To reduce the possibility damage and facilitate disassembly, please soaks the injector in penetrating oil one day before removal.
