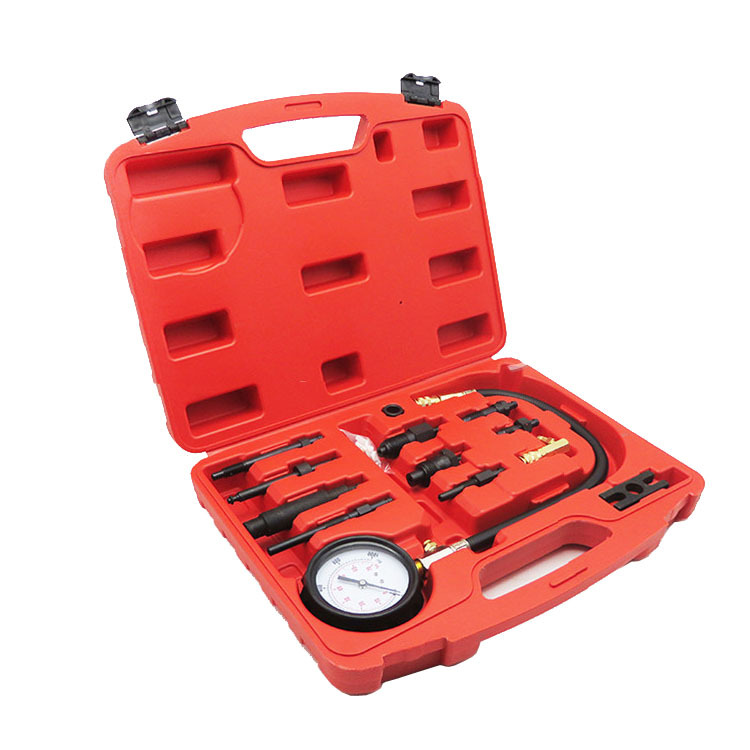

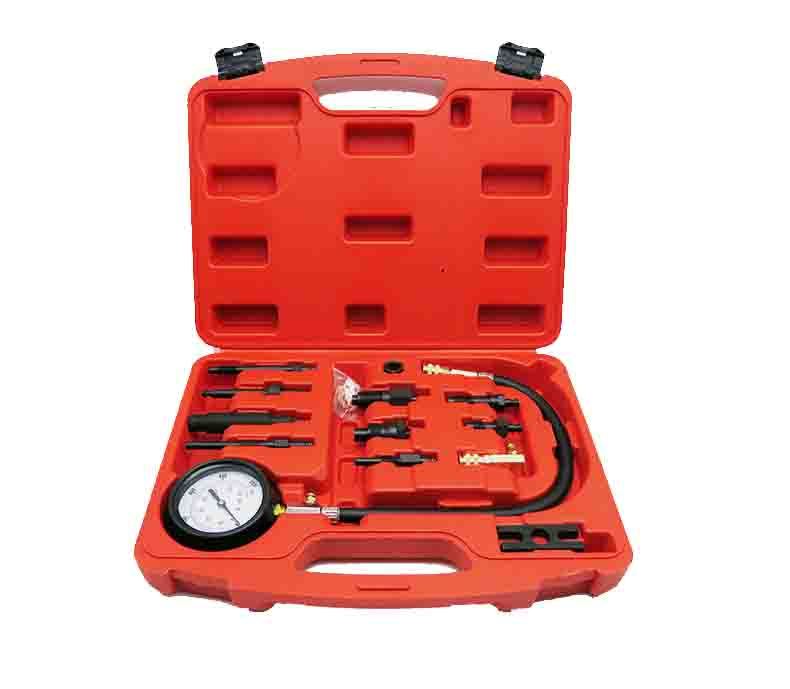

Diesel Engine Compression Test Kit Pressure Gauge & Adapter Engine TU-15B Cylinder Pressure Meter
No.VT01050
SKU: 1307101050
(0)
AUD70.00
Diesel Engine Compression Tester Kit Engine Testing Tool, suits both direct and indirect injection diesel engines.
The kit is designed to test the compression of diesel engines to ensure proper performance.
Allows the compression of car and van diesel engines (direct or indirect fuel injection) to be tested by cranking.
Quick-coupling gauge fitted with large Ø70mm gauge reading up to 1000psi and 70kg/cm².
18pc set included
1set assorted opper and plastic seals.
1pc "H" bracket;
1pc 90 degree coupling;

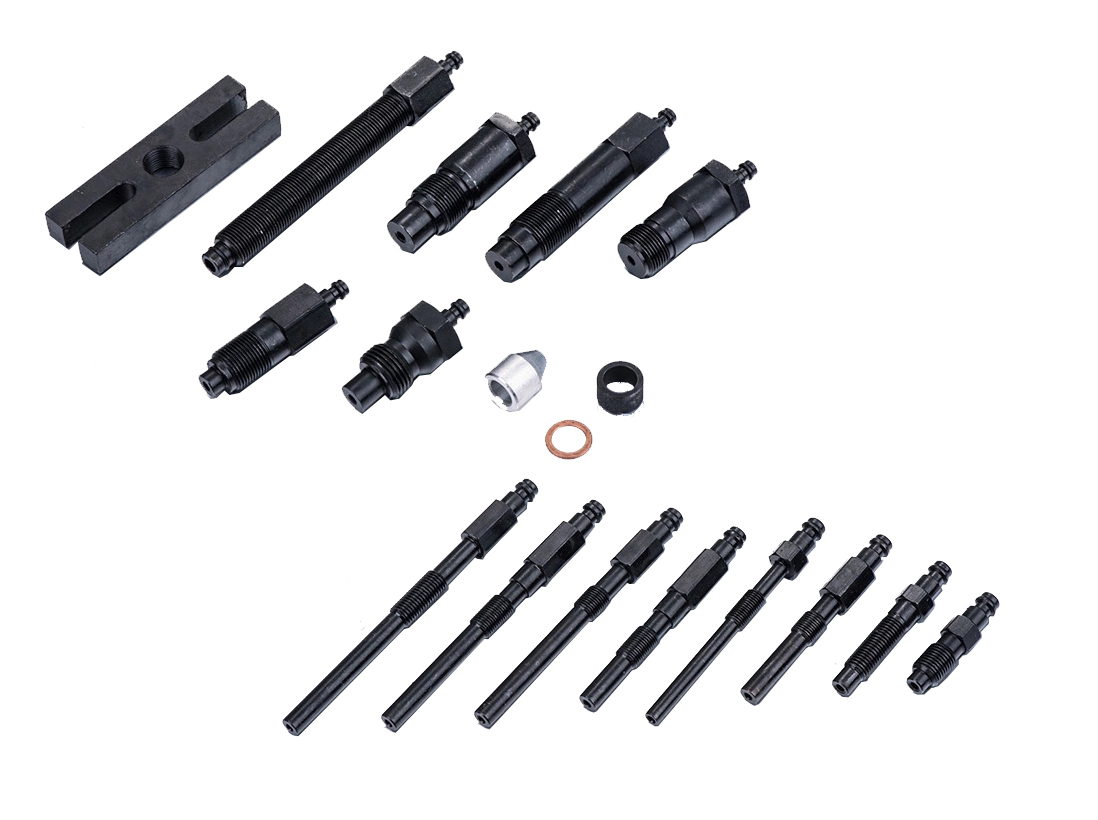

5pc adaptor sleeves size:6,12,18,25,38mm;
7pc threaded dummy glow plugs size: 3xM10, 1XM12, 1XM14, 1XM20, 1XM24;
2pc non-threaded dummy glow plugs;
Incorporating a schrader one way side pressure relief valve which allows rapid retesting;
1pc 500mm flexible extension hose with push on adapter

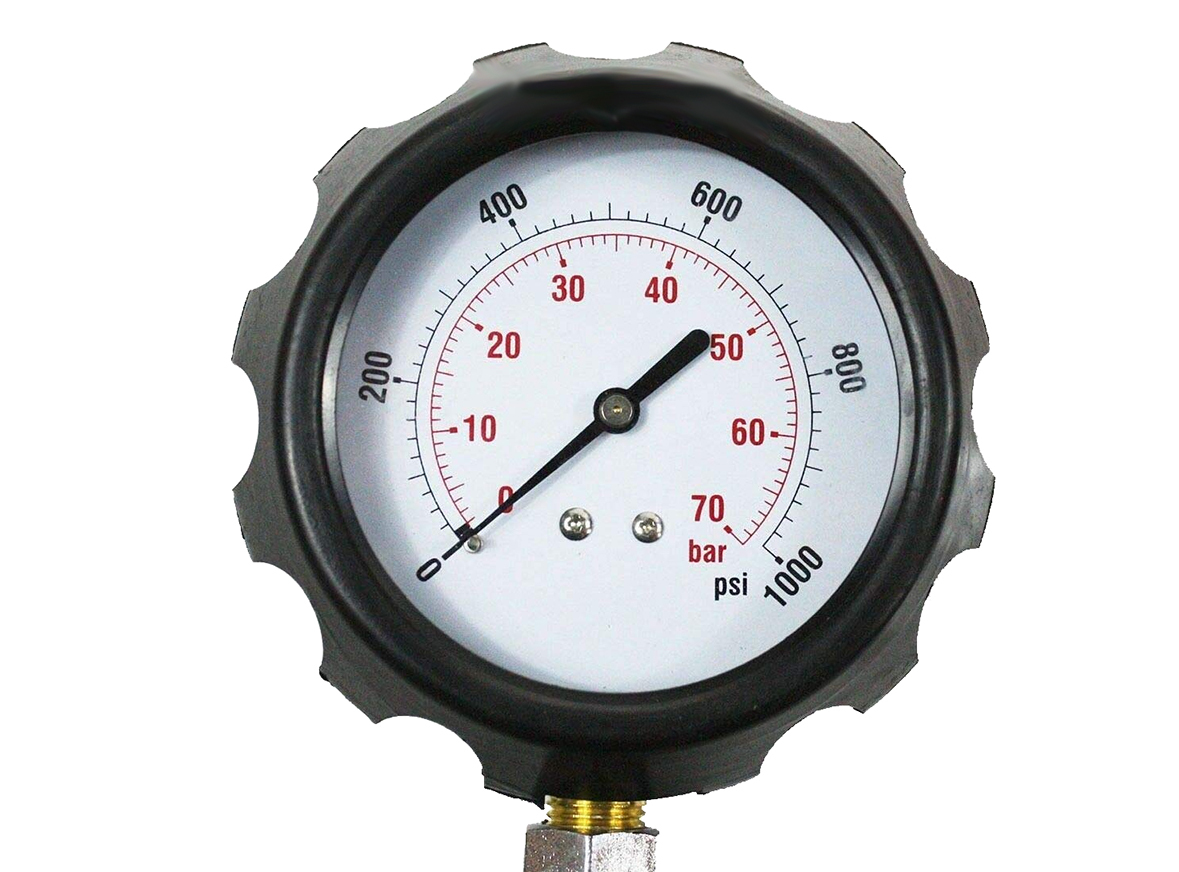

1pc 0-1000psi/0-70kg/cm2 Ø70mm gauge.
